Bearing
Discover WHL’s high-efficiency, innovation-driven ball bearings—engineered with the advanced options and capabilities only an industry leader can provide.

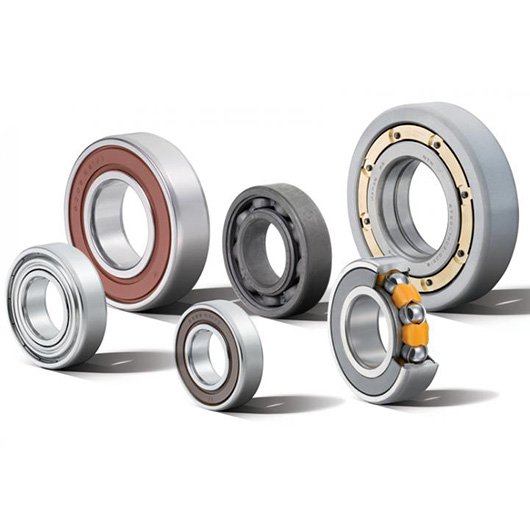

Ball-Bearings
Over View
Put performance first by selecting from over 10,000 active part numbers. With bore diameters ranging from 1.5 mm to 1,320 mm, WHL’s ball bearing portfolio stands among the most extensive and versatile available on the market.
Complete selection of ball bearing solutions.
• Deep-groove ball bearings, including miniatures: 1.5mm to 1,320mm bore
• Double-row radial contact bearings: series 4xxx
• Single-row angular contact bearings, including 4 points of contact: contact angles of 40° and 30°, steel, polyamide or solid brass cages. Bearings can be universal and pairable, with internal clearance or preload.
• Double-row angular contact bearings: open version with 25° angle: steel cage, series 5xxxS or polyamide cage series 3xxxA
• Self-aligning ball-bearings: series 12xx, 13xx, 22xx and 23xx from 10mm to 110mm bore, available with cylindrical or conical bore and seals
• Thrust ball bearings: series 511xx, 512xx, 513xx and 514xx
Ranges and methods for our bearings
• Topline range: The Topline range offers solutions that are available from stock and ready for use under demanding speed and temperature conditions (-60°C to +350°C), for applications such as the iron and steel industry, wood processing, electric motors, packaging machines, ski lifts, etc.
• Solid lubrication: An alternative to classic lubrication, solid lubrication eliminates failures due to lack of lubrication, prevents leakage of grease, and optimises energy consumption while being environmentally friendly.
• Deep groove ball bearings from the EMTR range: A solution that meets the requirements of reliability and competitiveness of applications in electric motors.
• Hybrid bearings with ceramic balls: Identified by the 5S prefix, hybrid bearings are particularly sought after for their speed, useful life and electrical insulation properties. They are available over a very wide range of dimensions.
Over View

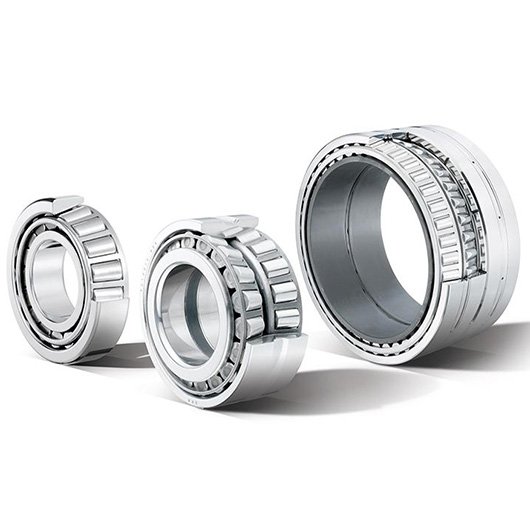

Explore our range of tapered roller bearings, designed for dependable performance and offered in a complete selection of both imperial and metric sizes. As a major manufacturer in this sector, WHL produces over one million units annually worldwide and maintains extensive warehouse capacity fully dedicated to serving industrial markets.
Complete selection of ball bearing solutions.
• Standard dimensions: metric: up to 850mm bore, imperial: up to 1400mm bore. For specific applications, our tapered roller bearings can measure up to 4m in diameter!
• Rows: 1, 2 or 4 rows,
• Mounting: in X or O configuration according to the loads applied
convenient due to the separable cup and cone
• Steels and heat treatments: Carburizing or carbonitriding to improve properties: surface hardness, dimensional stability, resistance to temperature changes through hardened steel
• Some benchmarks of the range: T7FC and 303xxD: our two series with steep angles (angle >24°). Particularly suitable for hydraulic pump and motor applications as well as pinion driveshafts for agricultural transmissions.
Ranges and methods for our bearings
• Topline range: The Topline range offers solutions that are available from stock and ready for use under demanding speed and temperature conditions (-60°C to +350°C), for applications such as the iron and steel industry, wood processing, electric motors, packaging machines, ski lifts, etc.
• Solid lubrication: An alternative to classic lubrication, solid lubrication eliminates failures due to lack of lubrication, prevents leakage of grease, and optimises energy consumption while being environmentally friendly.
• Deep groove ball bearings from the EMTR range: A solution that meets the requirements of reliability and competitiveness of applications in electric motors.
• Hybrid bearings with ceramic balls: Identified by the 5S prefix, hybrid bearings are particularly sought after for their speed, useful life and electrical insulation properties. They are available over a very wide range of dimensions.
Tapered-Roller-Bearings

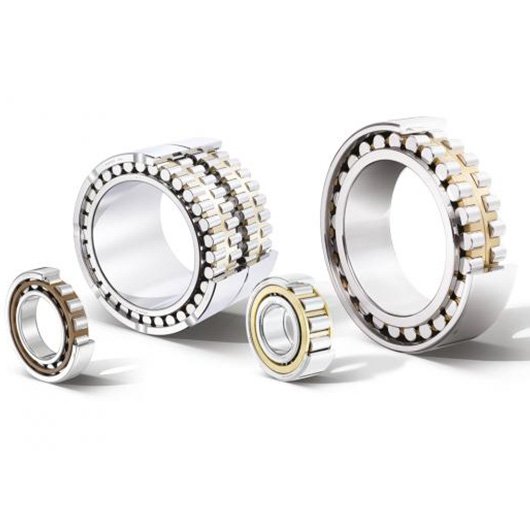

Cylindrical-Roller-Bearing
Over View
Cylindrical roller bearings are extensively used in a wide range of industrial applications, including reduction gears for robots and rail vehicles, gear motors for stationary machinery, gearboxes for mobile equipment, and speed increasers for wind turbines. Primarily designed to accommodate high radial loads, they can also support axial loads when the inner and outer rings are fitted with ribs.
Complete selection of ball bearing solutions.
• with a cage: high accelerations, high rotation speeds and high radial loads
• without a cage: the maximum quantity of rollers is used, and the supported loads are higher than CRBs with cages, the rotation speed will be moderate
• Bearing types: 1 row: NU, NJ, NUP, N, NF, NH, NJV, NFV, 2 rows: NNU, NN, SL, 4 rows: 4R
• Dimensions: bore diameter from 20mm to 1250 mm for the standard range and beyond for the tailor-made range
Ranges and methods for our bearings
• Topline range: The Topline range offers solutions that are available from stock and ready for use under demanding speed and temperature conditions (-60°C to +350°C), for applications such as the iron and steel industry, wood processing, electric motors, packaging machines, ski lifts, etc.
• Solid lubrication: An alternative to classic lubrication, solid lubrication eliminates failures due to lack of lubrication, prevents leakage of grease, and optimises energy consumption while being environmentally friendly.
• Deep groove ball bearings from the EMTR range: A solution that meets the requirements of reliability and competitiveness of applications in electric motors.
• Hybrid bearings with ceramic balls: Identified by the 5S prefix, hybrid bearings are particularly sought after for their speed, useful life and electrical insulation properties. They are available over a very wide range of dimensions.
